VS-1

VS-1

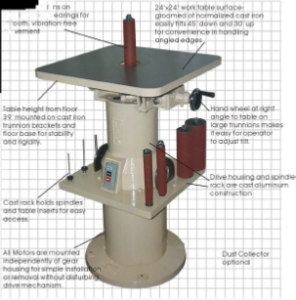

MODEL VS1
FEATURES:

Just as a Disc Sander is unsurpassed for smoothing flat or outside curved surfaces, a Spindle Sander is unbeatable for smoothing concave surfaces. One machine complements the other and each contributes greatly to increasing worker efficiency and reducing labor costs. By providing a large tilting table and ten spindle sizes, almost any conceivable inside curve and angle can be sanded with speed and accuracy., By adding oscillation to the rotating spindle, cutting action is improved, sleeve life prolonged and sanding lines obliterated. MAX Oscillating Spindle Sanders are performing all of these functions in hundreds of shops with precision, convenience and complete reliability.

Tannewitz

VS-1 Specifications

Standard Equipment:

  1. 10 complete safety spindles with 5 rubber drums and 1 set of 10 abrasive sleeves
  2. Three throat rings
  3. Two spindle wrenches (240248)
  4. Gear tilt table and table stop
  5. Magnetic starter
Table size 24″ x 24″
Table height 39″
Spindle speed 1725 rpm
Oscillations per minute 75
Length of oscillation 1 1/2″
Net weight 320 lbs

EACH MACHINE IS TESTED AND READY TO OPERATE ON ARRIVAL

*For special voltage see electric’s   *Other HP available upon special request
