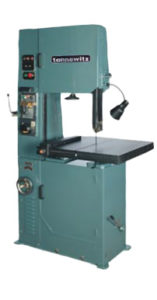

TR-2014W

TR2014

THIS SERIES IS BUILT FOR THE TOUGH JOBS

FEATURES:

  • Infinitely variable speed.
  • Blade welder and grinder are front mounted
    for quick, accurate blade repair & installation.
  • Replaceable rubber tires.
  • Brush for cleaning lower drive wheel.
  • Maintenance-free air pump provides air to
    remove chips from the point of cut.
  • Hand wheel controlled speeds.
  • Adjustable saw blade guides.
  • Machine work light.
  • Cast iron frame to minimize machine vibration
    and insure accuracy.

ALL MODELS AVAILABLE WITH & WITHOUT WELDER

TR-2014W Specifications

Throat depth20″
Work height20″
Blade width14 1/8″
Blade length1/8″ – 1″
Bandwheel dimensions160 1/4″
Bandwheels number20 1/2″
Wheel tires2
Blade guidesReplaceable rubber tire<
Table typeTool steel insert w/wear pin
Main table sizeFIXED
Auxiliary table size29 1/8″ x 26 3/4″
Table tilt15° F,B,L,R
Table height39 3/8″
Blade drive motor2HP 3PH
Electric controlsMagnetic starter w/115V
Blade speeds80-1500 FPM
Transmission4-Speed Totally enclosed
Blade welder, grinder, shear1″ CAPACITY STD.
Dimensions (L x W x H)47 5/8″ x 28 3/4″ x 80″
Net weight1320 LBS
