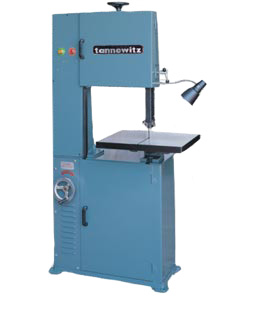

TR-18

TR-18

TR-18
FEATURES:

Infinitely variable speed. Blade welder and grinder are front mounted for quick, accurate blade repair & installation. Replaceable rubber tires. Brush for cleaning lower drive wheel. Maintenance-free air pump provides air to remove chips from the point of cut. Hand wheel controlled speeds. Adjustable saw blade guides. Machine work light. Cast iron frame to minimize machine vibration and insure accuracy.

ALL MODELS AVAILABLE WITH & WITHOUT WELDER THIS SERIES IS BUILT FOR THE TOUGH JOBS.

Tannewitz

TR-18 Specifications
Blade Speeds (FPM): 82-384 FPM
Height Capacity (max/in): 10″
Throat Capacity (max/in): 18″
Table Size (in): 22 1/4″ x 19 5/8″
Table Tilt: 15° L&R, 10° F&B
Blade Length (approx./in): 140 1/2″
Blade Width (min-max/in): 1/8″ – 5/8″
Table Height at 90° (in): 39 3/4″
Floor Space Required (in): 40 1/2″ x 22″
Motor: 1HP 1PH 115/230V
NW (lbs): 836 lbs
