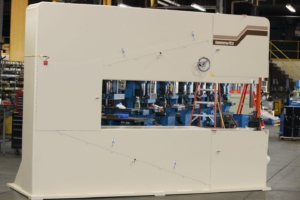

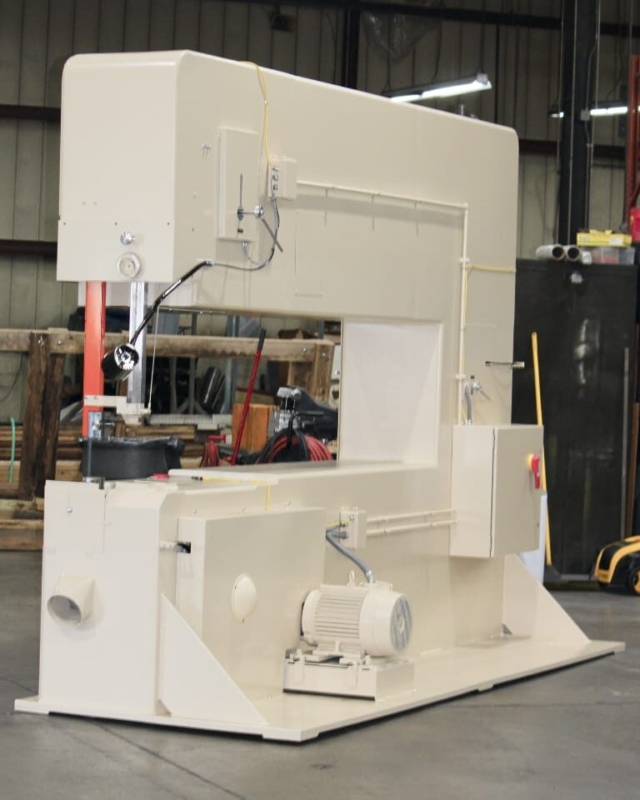

The 10020MH Band saw is a custom 3 wheel saw with a throat length of 100 inches. This is an all-steel frame weldment design. This saw is used primarily for cutting down large sheets of plastic or plywood in the early stages of the product manufacturing process. There are many table options for this band saw depending on the size of workspace needed. We can even offer an air float table to help move heavy materials around. This band saw that is pictured has no table on it the customer preferred to manufacture their own free-standing table. This band saw is also available with variable blade speed control with digital speed read out.
Bandsaw Specifications
- Size, wheel diameter 30″
- Under guide capacity 20″
- Throat capacity 100″
- Base Construction Weldment
- Tires (Replaceable) Speed-change
- Band width capacity Up to 2″-
- Band length TBD
- Upper wheel adjustment 4″
- Wheel type Heavy duty balanced steel disc
- Brakes Electric, 3 wheel
- Guide post Precision ground steel, manually adjusted
- Guides Tannewitz R418A all steel guide bodies w/reversible jaws
- Blade tension control
- Blade tracking control
- Overall height 100″
- Work Light Standard
- Operator & Maintenance manual 2
- Paint Color Beige tone
- Net Weight 6500 lb.
- Crated Weight 6700 lb.
