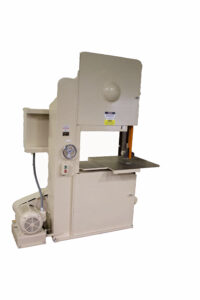

G1NE
FEAUTRES:
The Tannewitz production series Multi-Purpose Bandsaws, with 5 basic model choices, allows you to select the right saw to match your application and budget. From the economical single speed through variable speed models, the Production Series fabricated metal frames allow for large throat capacities up to 52 inches. By incorporating the optional 3 wheel design, larger throat capacities (up to 120 inches) can be met.
The versatility of the Production Series Multi-Purpose make the bandsaws ideal for any work environment.
G1NE Specifications
| Throat Capacity | 35 1/2″ |
| Work Thickness | 20″ |
| Wheel Diameter | 36″ |
| Horsepower | 5, 7 1/2, 10, 15 |
| Blade Speed | Single speed 1000 to 15,000 |
| Tachometer | – |
| Table Size (Main) | 36″-37″ |
| Table Size (Aux) | 16″-19″ |
| Table Tilt | 45″R, 5″ L |
| Table Height | 41″ |
| Blade Width | up to 2″ |
| Blade Length | 20’4″ |
| Machine Dimensions (Height) | 105″ |
| Net Weight | 3,200 lbs |
