36″ PRODUCTION BANDSAWS
FEATURES:

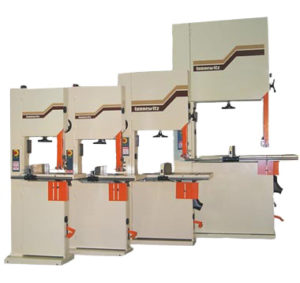

Tannewitz Advantage Series Band Saws
…designed for versatility and performance
Loaded with state-of-the-art features that increase production while keeping costs to a minimum. With the Advantage Series Band saw, you can select a model to match the needs of your operation perfectly. Available in 16″, 20″, 24″ or 36″ throat capacities, each band saw delivers Tannewitz quality in a rugged saw that can handle sizeable work loads in any plant.

Advantage Series Band Saw Features:

  • Miter Gauge and Fence STD
  • Sealed Ball Bearings
  • Adjustable Miter Gauge and Rip Fence
  • Magnetic Controls
  • Precision Machined Tilting Table
  • Accurate Blade Tension Indicator
  • Sturdy rack & pinion guidepost
  • Quality Blade Guides
  • Four-sided Blade Guard with Exclusive retracting Rear Guard
  • Interlocking Doors for Safety
  • Tracking Windows

^ 5 Horse Power available on 20″ & 24″
* Larger Underguide capacity available on 24″ & 36″

Ramco

36″BANDSAWS Specifications
MODEL 36″ BAND SAW
THROAT CAPACITY (MAX.) 35.8
UNDERGUIDE CAPACITY (MAX.) 22 STD*
HORSEPOWER 10 HP STD

230/460 3ph
BLADE SPEED 5500 SFM
WHEEL DIAMETER 37″
UPPER WHEEL ADJUSTMENT 5″
BLADE WIDTH 3/16″ – 1 1/4″
TABLE SIZE 31″ X 45″
TABLE TILT 45oR, 5oL
TABLE HEIGHT 44″
OVERALL HEIGHT 112″
